Description

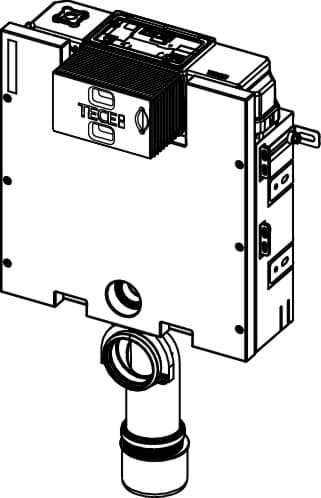

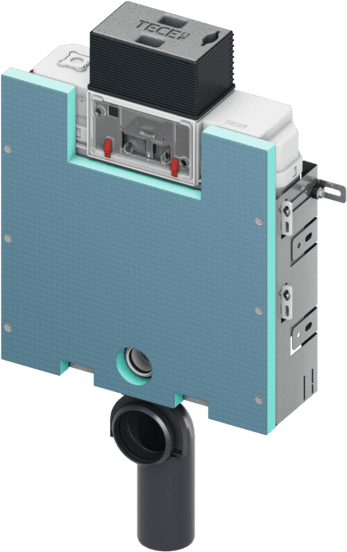

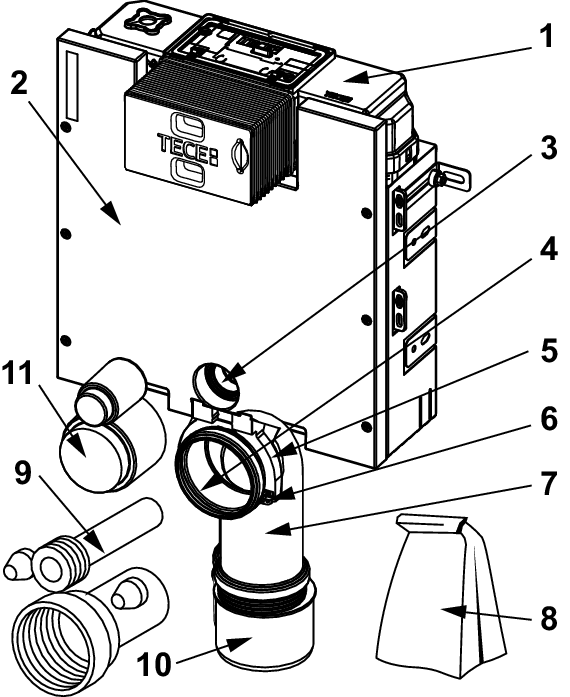

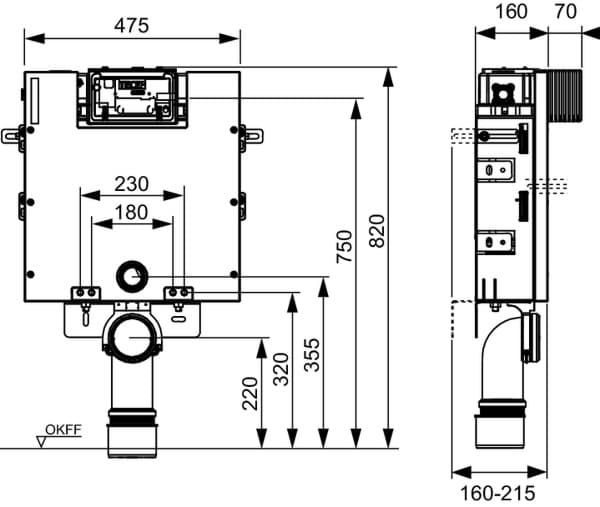

Toilet module including “easy fit” flush plate installation. For installation in a bricked-in pre-wall in front of a solid wall, depth-adjustable. Uni cistern for front or top actuation: Safety tank made of impact-resistant plastic, tested to EN 14055 Cistern fully pre-assembled and sealed Cistern connection with outer thread R 1/2" at the side, compatible with quick adapters 10 litre tank volume; 6 litre pre-set standard flush volume, 4.5/7.5/9-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; remaining volume can be used for immediate cleaning flush. Insulated against condensation water For TECE flush plates and toilet flush handle Can be used as a single or dual-flush cistern “easy fit” flush plate installation Installation tunnel for service opening, can be shortened without tools Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109 Module frame: Steel frame with front tile base made of 30 mm structural board, galvanised Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP Joint adapter also suitable for horizontal installation DN 90 toilet connection set including protective plug Please order separately: Toilet flush plate (see flush plates) Insert chute for cleaning tablets (optional, front actuation only) TECE upgrade set brick-wall for TECE shower toilets (optional) Caution: If the flush plate is fitted in front of cisterns with low installation height and a compact ceramic is used, the toilet lid may occasionally drop down unintentionally. When using compact ceramics fit the flush plate with top actuation only.
