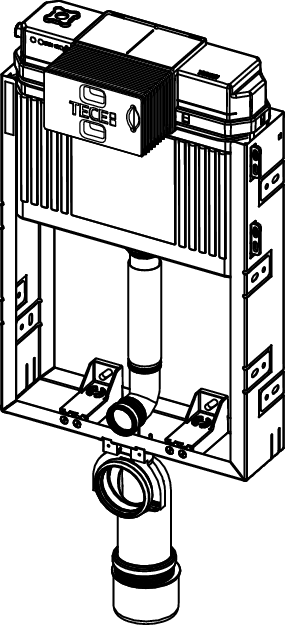

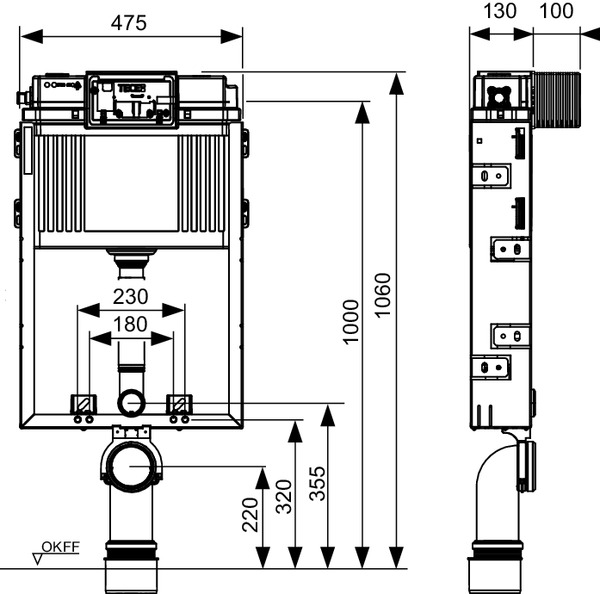

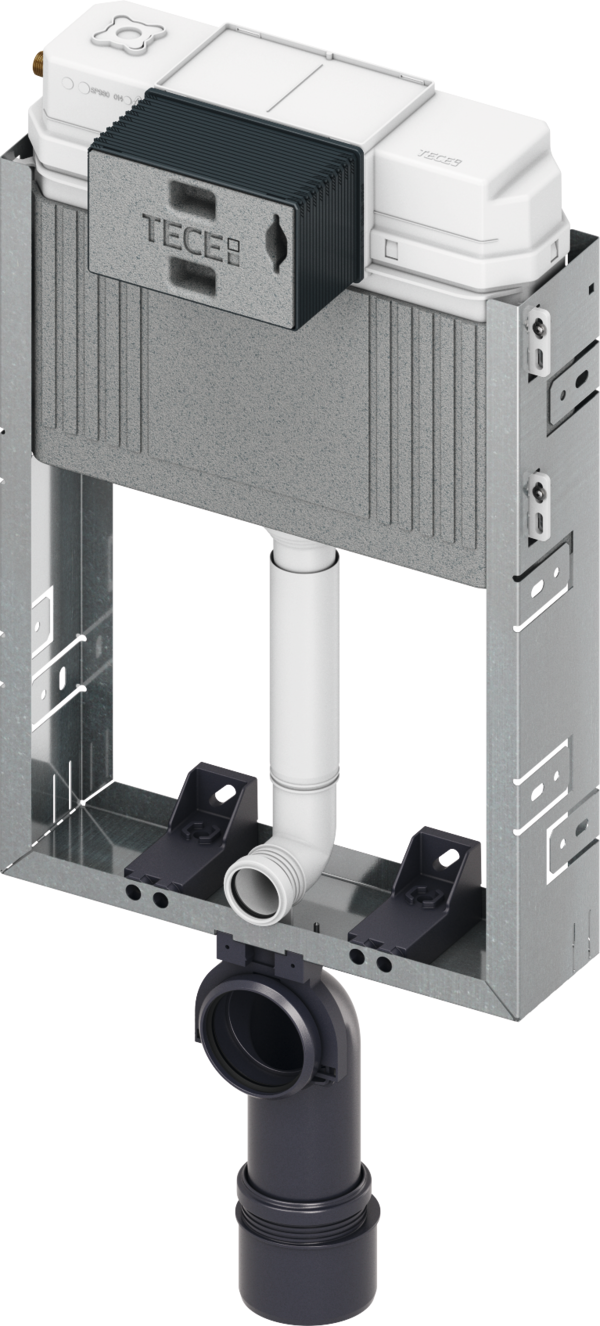

Toilet module including “easy fit” flush plate installation. For bricked-in pre-wall installation in front of a solid wall. Uni cistern for front actuation: Safety tank made of impact-resistant plastic, tested to EN 14055 Cistern fully pre-assembled and sealed Cistern connection with outer thread R 1/2" at the side, compatible with quick adapters 10 litre tank volume; 6 litre pre-set standard flush volume, 4.5/7.5/9-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; remaining volume can be used for immediate cleaning flush. Insulated against condensation water For TECE flush plates and toilet flush handle Can be used as a single or dual-flush cistern “easy fit” flush plate installation Installation tunnel for service opening, can be shortened without tools Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109 Module frame: Steel frame, galvanised Two M 12 retaining bolts and M 12 nuts, 180 or 230 mm installation spacing Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP Joint adapter also suitable for horizontal installation DN 90 toilet connection set including protective plug Please order separately: Toilet flush plate (see flush plates) Assembly feet 9030024 (optional) Insert chute for cleaning tablets (optional) TECE upgrade set brick-wall for TECE shower toilets (optional) Note: Ideal for row assembly by fixing directly with corner joints and TECEprofil section tube as an aid to alignment.
