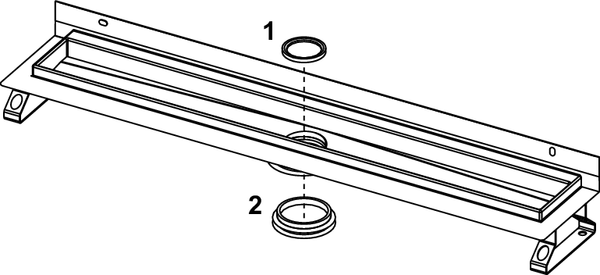

Straight channel body with wall upstand for installation in the screed against the wall, with flange and Seal System sealing tape, for creating an independently tested connection of the TECEdrainline shower channel to the composite seal. Consisting of: Channel body with flange made of polished stainless steel, material 1.4301 (304) Seal System sealing tape with matting for installation by the customer in the liquid or strip composite seal Connecting clips for anchoring in the screed and fitting of optional assembly feet Central connection piece for drain Internal incline for improved water drainage and self-cleaning effect Seal Installation height to upper edge of finished floor (depending on drain): 67 mm "vertical" drain 68.5 mm "extra-flat" drain 95 mm "flat" drain 120 mm "standard" drain Caution: Not compatible with the "max" drain! Please order separately: Design grate or tileable channel Drain Assembly feet (optional) Drainbase sound insulation mat (optional), for adherence to installation noise level according to DIN 4109 and VDI 4100 sound protection levels (SSt) I to III
