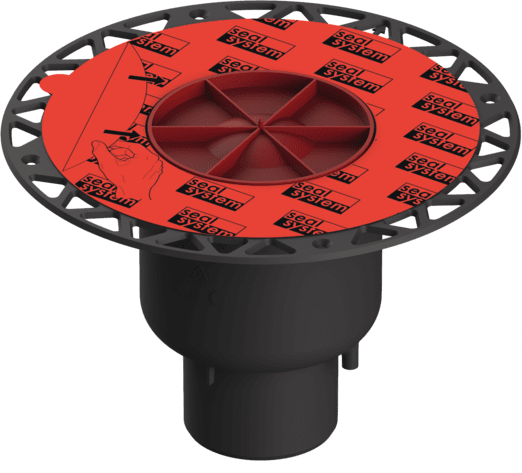

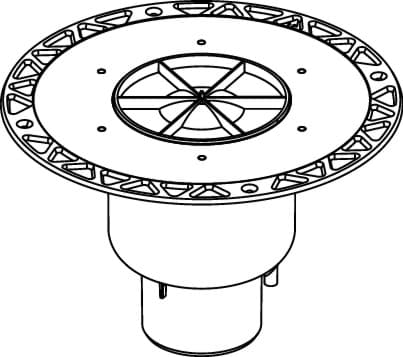

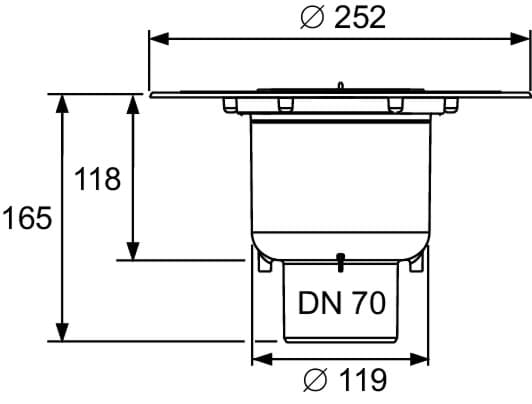

Floor drain TECEdrainpoint S DN 70 vertical, standard, made of plastic (PP), tested to EN 1253. With universal flange for connection of composite seals in accordance with DIN 18534 or clamped flange connections With removable odour trap Sealing water height = 50 mm Drainage capacity to EN 1253 at 10/20 mm water level over grate: With minimum height of the drain top: 0.47/1.81 l/s With maximum height of the drain top: 0.63/1.84 l/s Delivery incl. protective cap, protective foil for on-site protection during construction, and assembly instructions. Required core drill hole: Diameter 122 mm Please order separately – depending on seal type: Seal System sealing sleeve for the execution of a tested and certified connection to the composite seal Compression ring set and cut-to-size sealing foil for clamped flange connections Note: Drainage capacity values measured with drain top and design grate 150 mm (Item No. 3660003), for further drain capacity values see the relevant chapter.
