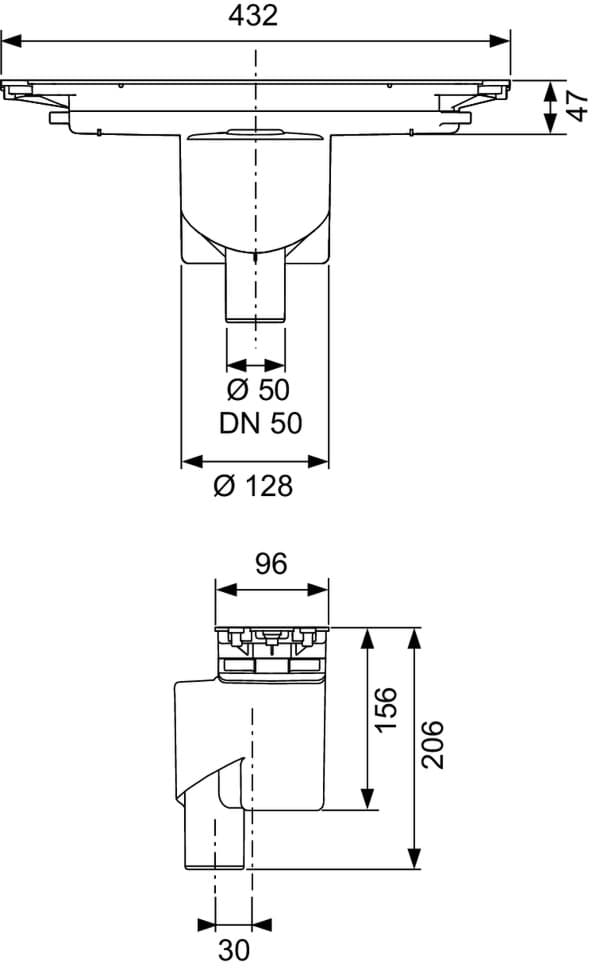

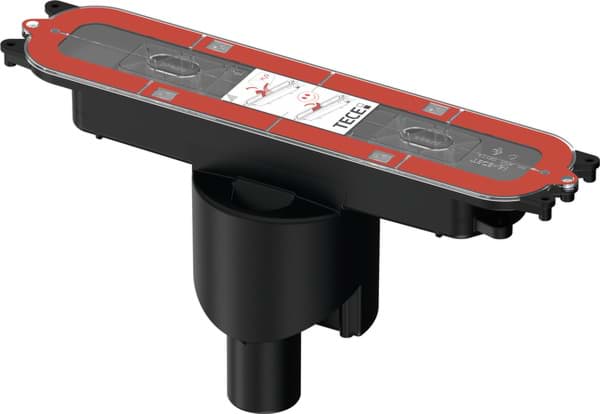

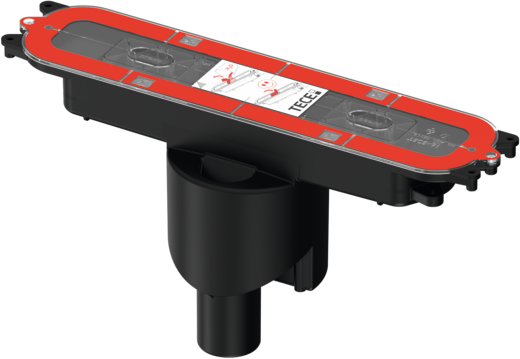

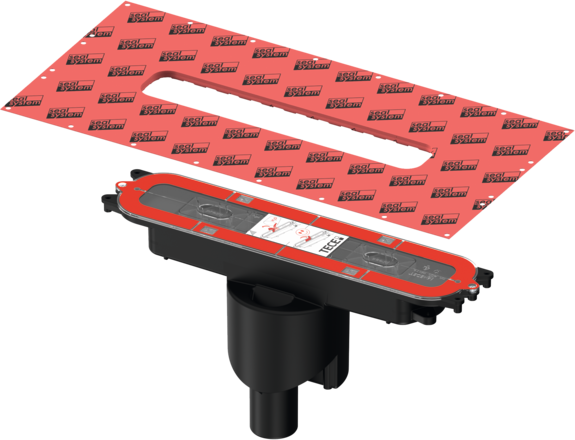

Drain for TECEdrainprofile shower profile, for installing in screed, for vertical connection to a DN 50 drain line. With factory fitted and clickable Seal System sealing sleeve, to create a DIN 18534 compliant connection of the composite seal. Min. Installation height 47 mm (bottom edge of drain to upper edge of screed) Drainage capacity ≥ 1.31/≥ 1.37 l/s (to EN 1253 with 10/20 mm build-up above the profile cover) Sealing water height 50 mm Removable odour trap Integrated screed anchor Factory fitted, clickable and flexible sealing sleeve with Seal System Fits prefabricated sound insulation strips Protective construction cover Sliding/mobile seal for connection with TECEdrainprofile shower profile and to compensate for structual tolerances Please order separately: Wall and floor mounting brackets or mounting feet (optional) Drainbase sound insulation mat (optional) Fire protection set FireStop EI 120 DN 50 (optional)
