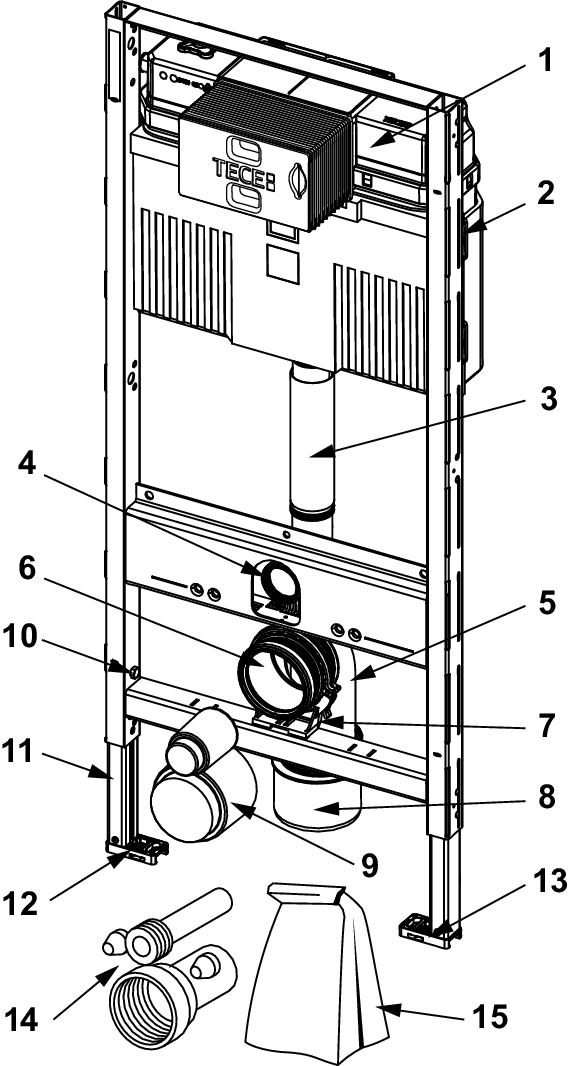

Toilet module including “easy fit” flush plate installation. For fitting to TECEprofil section tubes or for installation in metal or wooden stud walls and as a pre-wall or corner module; also suitable for single block assembly. Uni cistern for front actuation: Safety tank made of impact-resistant plastic, tested to EN 14055 Cistern fully pre-assembled and sealed. Cistern connection with outer thread R 1/2" at the side, compatible with quick adapters 10 litre tank volume; 6 litre pre-set standard flush volume, 4.5/7.5/9-litre flush volume can be set at any time; 3-litre partial flush volume for dual-flush system; remaining volume can be used for immediate cleaning flush. Insulated against condensation water For TECE flush plates and toilet flush handle Can be used as a single or dual-flush cistern “easy fit” flush plate installation Low-noise hydraulic filling valve, fitting group 1 according to DIN 4109 Module frame: Self-supporting, powder-coated Two M 12 retaining bolts and nuts Toilet drain bend DN 90 with joint adapter DN 90/100, made of PP Joint adapter also suitable for horizontal installation Toilet connection set DN 90 A raised ceramic attachment for a sitting height of 48 cm can be added in keeping with German standard DIN 18040 (DIN 18040: Barrier-free construction - Part 1: Publicly accessible buildings and workplaces). Please order separately: Toilet flush plate (see flush plates) Fitting for pre-wall, corner or wooden stud wall structures Insert chute for cleaning tablets (optional) TECE upgrade set dry-wall for TECE shower toilets (optional) Note: If toilet ceramics with a reduced supporting surface are used (= distance from middle of fixing bolt to lower edge of supporting surface is not larger than 18 cm) - e.g. V & B Memento, Subway 2.0 - it is necessary to install the steel brace set 9041029 in the lower build space.
