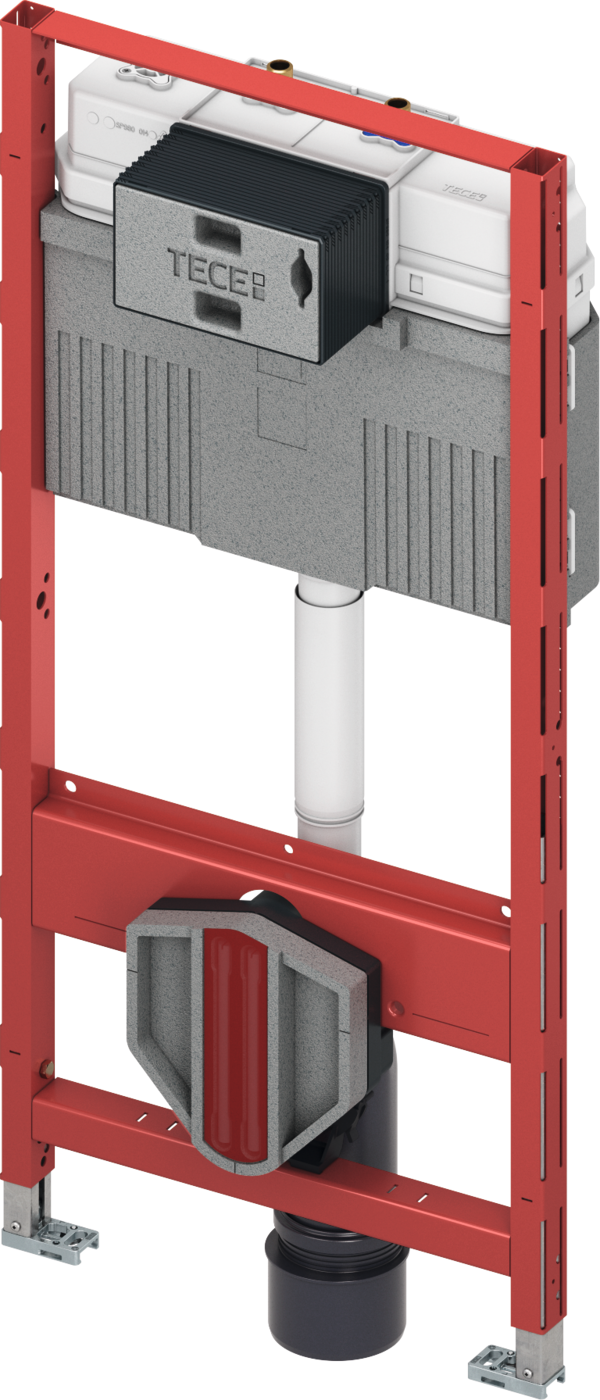

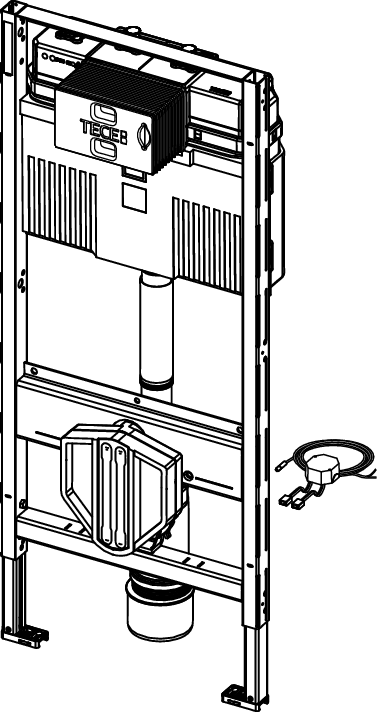

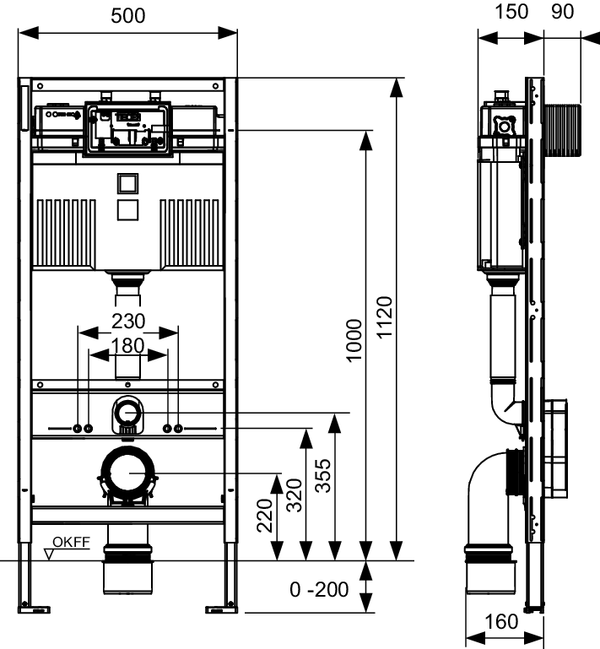

TECEprofil toilet module with Uni cistern, with integrated warm and cold water hygiene flushing function, installation height 1120 mm Toilet module including “easy fit” flush plate assembly. For fixing to TECEprofil section tubes or for installation in metal or wooden stud walls and as a pre-wall or corner module; also suitable for single block assembly. Uni cistern for operation from the front: Cistern with integrated hygienic flush Completely pre-installed flushing unit with hygienic flushing function Multi-way shut-off valves with function for flushing the pipework before commissioning Two cistern connections with outer thread R 1/2" at the top, for flushing hot and cold water pipes (2 x cold water possible), compatible with quick-action adapters Safety tank made of impact-resistant plastic, tested to EN 14055 Cistern completely pre-assembled and sealed 10 litre tank volume; 6 litres preset standard flush volume; 4.5/7.5/9 litres flush volume adjustable at any time; 3 litres partial flush with dual-flush system; residual volume can be used for immediate cleaning flush. Insulated against condensation water Suitable for TECE flush plates and toilet flush handles Can be used as a single or dual-flush cistern "easy fit" flush plate installation Installation tunnel for service opening, can be shortened without tools Low-noise hydraulic filling valve, acoustic group 1 in accordance with DIN 4109 Mains connection with transformer including connection cable Fill level sensor, protects against backflow in the cistern Operation: Via Bluetooth interface via TECE app Smartflow Optional via BMS interface Infinitely variable setting of flush intervals and flush volume Setting of flush days and flush volume Logging of flush history Module frame: Self-supporting, powder-coated Two M 12 retaining bolts and nuts Toilet drainage bend DN 90 with joint adapter DN 90/100 made of PP joint adapter also suitable for horizontal installation Toilet connection set DN 90 Toilet connection box including rough-in protection, with junction box and cover for transformer Setting of a raised ceramic attachment for 48 cm seat height, possible in accordance with DIN 18040 (DIN 18040-1: Construction of accessible buildings - Design principles - Part 1: Publicly accessible buildings). Item number: 9300102
