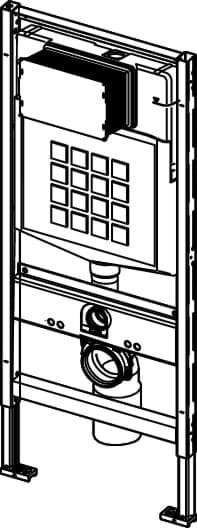

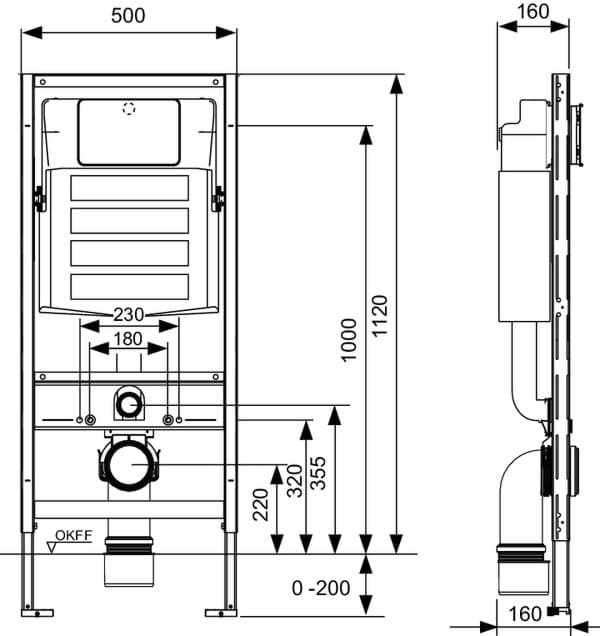

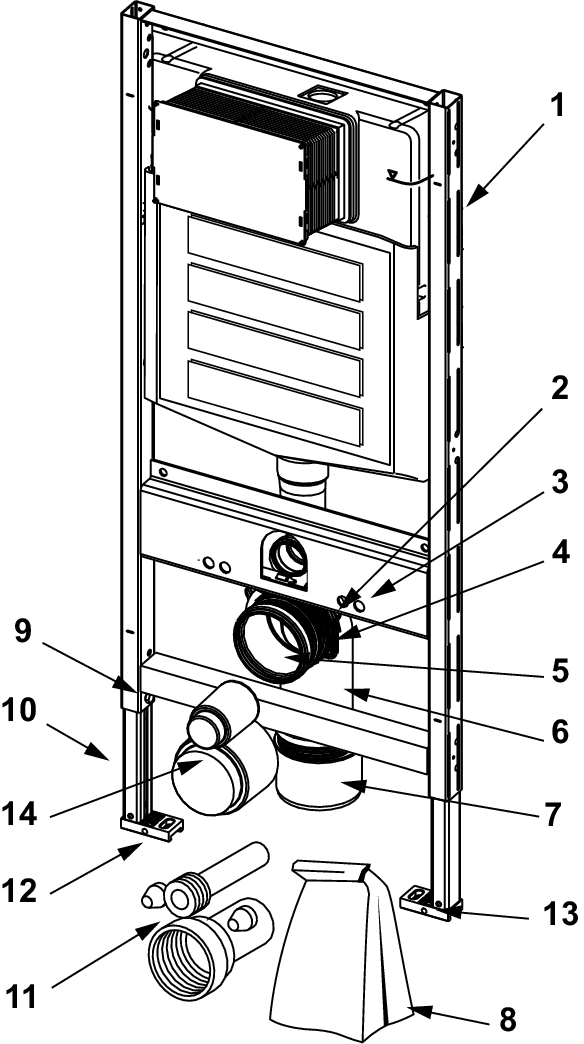

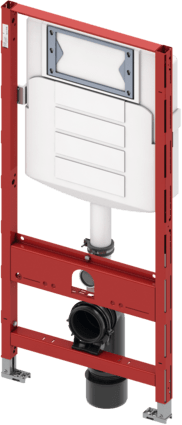

WC module for attachment to TECEprofil profile pipes or for installation in metal or wooden stud walls and as a pre-wall or corner module; also suitable for single block installation. For Geberit flush plates Sigma 01/10/20/21/30/50/60/70/80. Consisting of: Geberit Sigma cistern for actuation from the front: cistern made of plastic cistern not pre-assembled cistern connection with 1/2" AG 7.5 litre tank volume; 6 litre preset standard flush volume; 4.5 and 7.5 litre optionally adjustable at any time; 3 litre partial flush volume with dual flush technology. Residual volume can be used for immediate cleaning flush. condensation-insulated Module consisting of: self-supporting mounting frame, powder-coated two retaining bolts with M 12 nuts WC drain elbow DN 90 with transition adapter DN 90/100 made of PP Transition adapter also suitable for horizontal installation WC connection set DN 90, including building protection plug Adjustment of a raised ceramic attachment for 48 cm seat height, possible in accordance with DIN 18040 (DIN 18040: Barrier-free construction - Part 1: Publicly accessible buildings and workplaces). Please order separately: Fixing for pre-wall, corner or wooden post installation TECE drywall upgrade set for TECE shower toilets (optional) Note: When using toilet ceramics with a reduced support surface (= distance from centre of fixing bolt to lower edge of support surface not greater than 18 cm) - e.g. V & B Memento, Subway 2.0 - the installation of a steel strut set 9041029 in the lower installation space is required. Not suitable for TECE flush plates, WC fittings and TECE insert shaft for cleaning tabs.
