Description

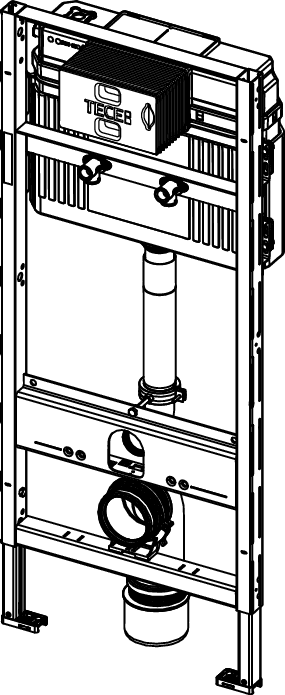

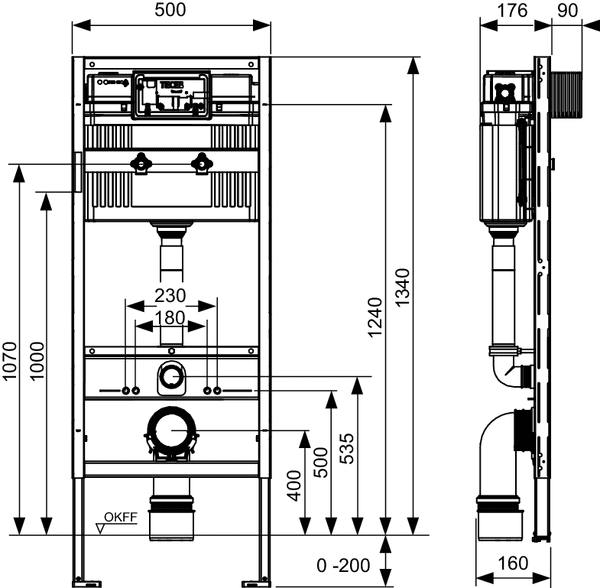

WC module including "easy fit" flush plate installation. For attachment to TECEprofil profile pipes or for installation in metal or wooden stud walls and as a pre-wall or corner module. Uni cistern for operation from the front: safety tank made of impact-resistant plastic, tested in accordance with EN 14055 Cistern completely pre-assembled and sealed Cistern connection with external thread R 1/2" on the side, compatible with quick adapters 10 litre tank volume; 6 litre preset standard flush volume; 4.5/7.5/9 litre flush volume adjustable at any time; 3 litre partial flush volume with dual flush technology; residual volume can be used for immediate cleaning flush. Insulated against condensation for TECE flush plates and WC fitting can be used as a single or dual-flush cistern "easy fit" flush plate mounting Installation tunnel for service opening, can be shortened without tools Low-noise hydraulic filling valve, fitting group 1 in accordance with DIN 4109 Modular frame: self-supporting, powder-coated two adjustable foot supports for a floor structure of 0-200 mm two pre-assembled, sound-decoupled 1/2" x 1/2" wall plates to accommodate surface-mounted taps two retaining bolts and nuts M 12 fixing distance 180 or 230 mm WC drain elbow DN 90 with transition adapter DN 90/100 made of PP transition adapter also suitable for horizontal installation WC connection set DN 90, including protective plugs Please order separately: WC flush plate (see flush plates) Fastening for installation in front of wall, corner or wooden studs Chute for cleaning tabs (optional)
