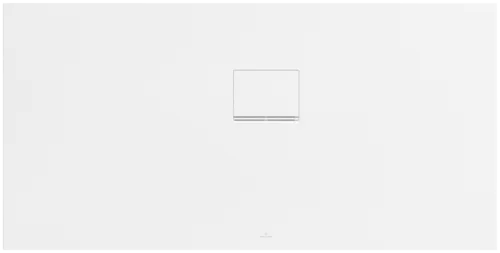

Article title: Villeroy & Boch Squaro Infinity Rectangular shower tray, 1500 x 750 x 40 mm, Stone White
Article number: UDQ1575SQI2RV-RW
Assembly / Assembly type: Surface-mounted, Corner installation, on right|flush-fitting installation
Assembly instructions: Quaryl shower trays can be cut to size on site in accordance with the installation instructions; see pro.villeroy-boch for a detailed video.
Drainage rate in l/min: 48
Scope of delivery: 1 x rectangular shower tray , 1 x outlet cover in matching matt colour with chrome-plated strip
Ordering information: Supplied without support frame / base. With cut shower trays, we recommend the use of a composite seal in accordance with ETAG 022 on the floor structure below the shower tray in order to prevent any moisture from penetrating the floor structure.
Length in mm: 1500
Width in mm: 750
Height in mm: 40
Interior depth: 15
Collection: Squaro Infinity
Weight in kg: 23.6
Material: Quaryl®
Colour name : Stone White
With feet/base: No
Other material: Outlet cover: Acrylic
Other surfaces: Outlet cover: matt
With bath support: No
Anti-slip class: Anti-slip class C
EAN number: 4051202852009
Model number: UDQ1575SQI2RV
