Popis

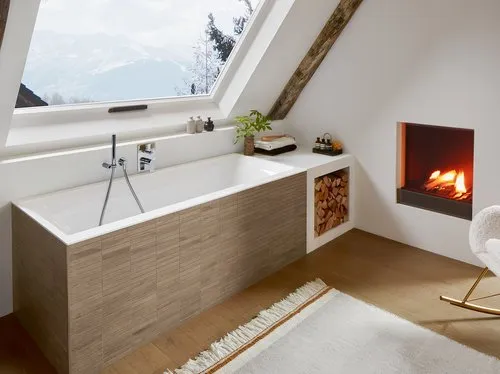

Article title: Villeroy & Boch Subway 3.0 Rectangular bath, 1800 x 800 mm, White Alpin
Article number: UBQ180SBW2TDV-01
Assembly / Assembly type: built-in installation
Assembly instructions: There is no space for a tap hole behind the overflow., 2 holes are possible to the left or right respectively of the overflow hole
Scope of delivery: 1 x rectangular bath
, 2 x bath support frame (self-adhesive), adjustable from 130 - 180 mm
1 x matching outlet and overflow. The outlet cover matches the colour of the bath, the overflow is chrome-plated.
1 x Quiet filling of the bath tub with the "SilentFlow" feature in the base of the bath. This cannot be ordered at a later date!
The visible parts match the colour of the bath.
Length in mm: 1800
Width in mm: 800
Height in mm: 480
Installation height: Bath: 610 - 660 mmProfibox 2.0 without system: 625 - 625 mm
Collection: Subway 3.0
Weight in kg: 43.2
Outlet / outlet: central outlet
Material: Quaryl®
Colour name : White Alpin
With feet/base: Yes
With panel: No
Other material: Outlet cover: Plastic
Overflow: Plastic
Other surfaces: Outlet cover: glossy, Overflow: glossy
With overflow: Yes
With bath support: No
Capacity: 219
Number of people: 2
For handle mounting: Yes
Anti-slip class: Anti-slip class A
Bath options: [PA] Profibox 2.0 alcove
Following systems are available: [AC] Airpools[AE] Airpools[AP] Specialpools[CC] Combipools[CE] Combipools[HC] Hydropools[HE] Hydropools[IP] Specialpools
Seat unit: 2
Technical information: Note: There is no space for a tap hole behind the overflow.Tap holes can be made to the left or right of the overflow
EAN number: 4062373881866
Model number: UBQ180SBW2TDV
