Description
Battery type
6LR61 (9 V)
Protection class
IPX4
Operating voltage
9 V DC
Flow pressure
20-1000 kPa
Operating temperature
0-70 °C
Flush volume Factory setting
3 l
Flush volume setting range
1-20 l
Flushing capacity
0.05 l/s
Flushing capacity
3 l/min
Interval flush Factory setting
72 h
To prevent stagnation in drinking water pipes
For connecting a cold or hot water pipe
For surface mounting
Interval flush, flush interval and flush time adjustable
Nominal diameter of the supply pipe maximum DN 20
Battery-operated
Solenoid valve made of PA66
Filter screen with flat seal made of TPE
Splash-proof
Fitting group I according to EN ISO 3822-1
Without mounting unit
Alkaline manganese battery type E-block 9 V

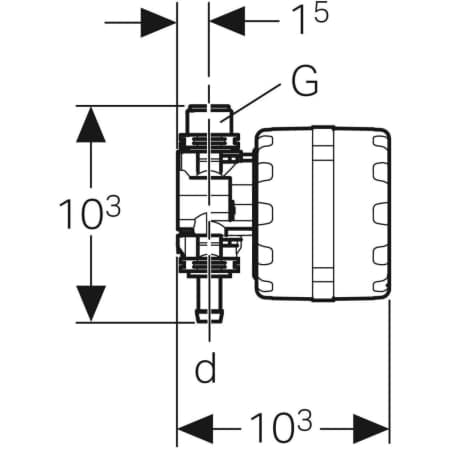

d, ø: 10 mm
G: 1/2 ″
H: 10.3 cm
D: 10.3 cm
Connection: 1 water connection
PU1: 1 pc.
PU2: 5 pcs.
